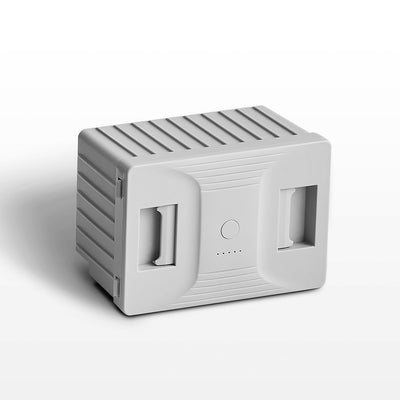

Product Details: Rated capacity is 15600mAh. The operating temperature range: -4℉ to 168℉.
Applicable Models: TWW series Model and other 12V Portable Refrigerators with Removable Battery.

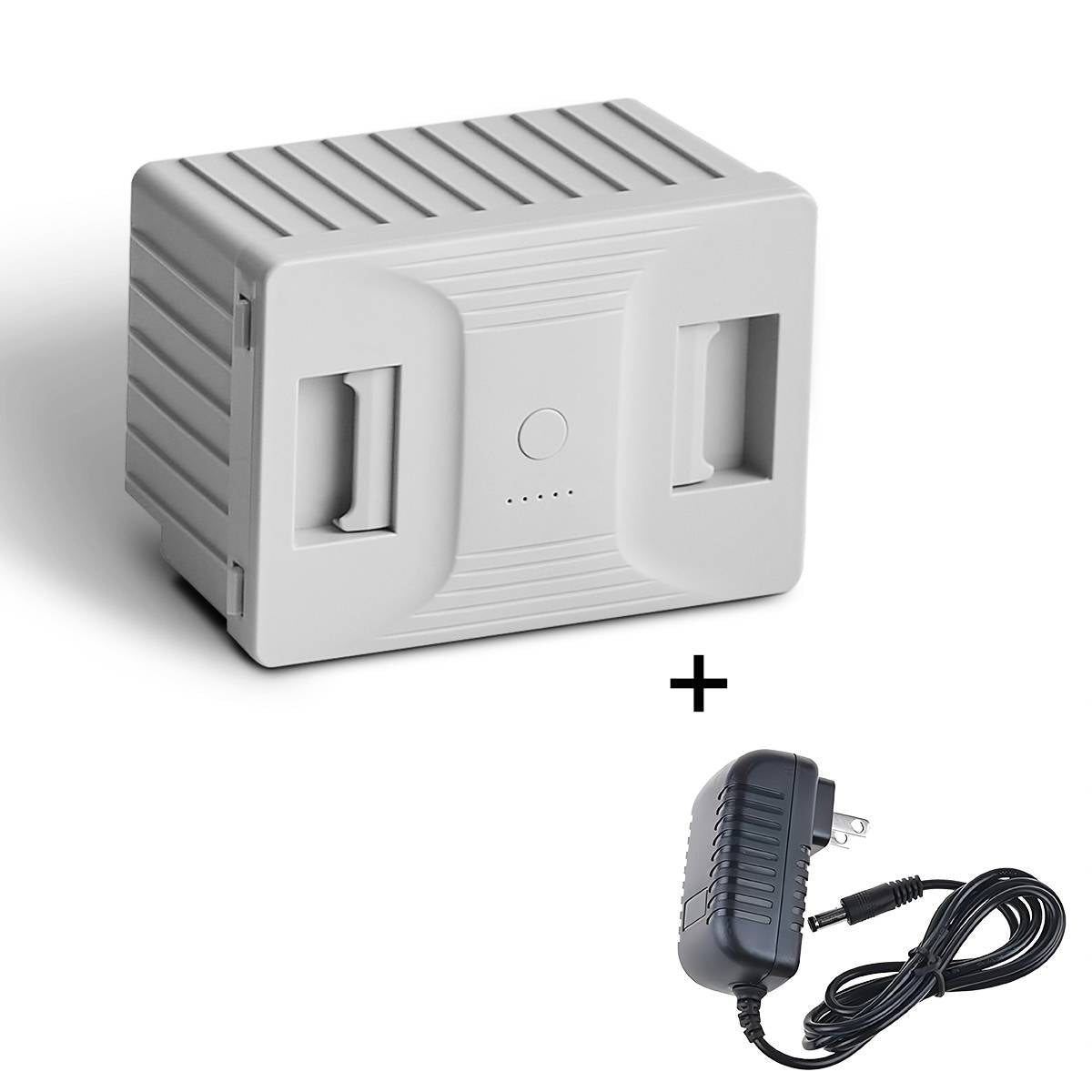

Multiple Charging Way: It can be charged it in the portable fridge (DC 12/24V and AC 100-240V) or solar panel (12-50V). Also, it can be charged by the dedicated battery charger and the charging station. (need to purchase separately)
Instruction for Solar Charging: Install the battery to the refrigerator, and insert the solar charge cable into the refrigerator's ''SOLAR'' terminal. MAX Solar Input Voltage: 50V, MAX Solar Input Current:10A. The charging input power should be higher than the working power of the refrigerator (about 40-50w), or turn off the refrigerator to enter the standby state, otherwise the battery will not be able to charge. It's recommended to use 100W solar panel.
Easy Swicth: Long press the power button to turn on/off the battery. The power indicator will turn green when it is charging.
Improved Design: Extrusion buckle design made simplified installation and disassembly. Real-time battery power and the battery voltage will be displayed on the control panel.
Charging Limited Voltage(DC):12.6V
Charging Limited Current(DC):3A
Working Time: 4~10 hours
1. Remove the lid by pressing
2. Push the battery in by pressing and snapping it into place
3. Long press the power button on the battery to switch ON/OFF.
